Semiconductor Holes: How They Work & Why They Matter

I. Introduction

In the semiconductor field, the concept of a hole is very important. It, along with electrons, forms the basic charge carriers that conduct current in semiconductors, directly influencing and determining the electrical properties of semiconductor materials and the working mechanisms of various semiconductor devices.

Therefore, for digital technology enthusiasts, it is essential to have a basic understanding of the concept of holes, their generation process, and their role in semiconductor physics.

II. Definition of a Hole in semiconductors

Simply put, a hole can be seen as a vacancy where an electron is missing in the valence band of a semiconductor. In a semiconductor crystal, atoms are connected through covalent bonds. Taking silicon crystal as an example, a silicon atom has four electrons in its outermost shell, and each silicon atom forms four covalent bonds with four neighboring silicon atoms to form a stable crystal structure.

When a semiconductor is subjected to thermal excitation, optical excitation, or other external energy, some electrons in the valence band may gain enough energy to break free from their covalent bonds and jump to the conduction band, becoming free electrons. At this moment, a vacancy is left where the electron originally was, and this vacancy is referred to as a “hole.”

III. Mechanisms of Generation

✅ Thermal Excitation

At room temperature, the atoms in a semiconductor are in a state of continuous thermal motion. This thermal motion gives the atoms a certain amount of energy. Some of the higher-energy atoms may have electrons around them that gain enough energy to overcome the covalent bond and transition from the valence band to the conduction band.

When an electron transitions from the valence band to the conduction band, a hole is generated in the valence band. The higher the temperature, the more intense the thermal motion of the atoms in the semiconductor, and the greater the number of electron-hole pairs generated.

✅ Optical Excitation

When photons are incident on a semiconductor material, if the energy of the photons is greater than the bandgap of the semiconductor, the photon energy can be absorbed by the electrons in the semiconductor. After absorbing the photon energy, the electron jumps from the valence band to the conduction band, leaving a hole in the valence band. This process is known as the photovoltaic effect in semiconductors.

In optoelectronic devices such as solar cells, the principle of generating electron-hole pairs through optical excitation is used to convert light energy into electrical energy. For example, in common silicon-based solar cells, the process works by having photons from sunlight incident on the silicon material, generating a large number of electron-hole pairs. These charge carriers move directionally under the action of the internal electric field of the battery, forming a current.

✅ Impurity Doping

In semiconductor manufacturing, doping is often used to modify the electrical properties of a semiconductor. When a small amount of acceptor impurities (such as boron, aluminum, etc.) are doped into an intrinsic semiconductor, the acceptor impurity atoms replace some of the semiconductor atoms in the crystal. The outermost electrons of the acceptor impurity atoms are fewer by one compared to those of semiconductor atoms.

For example, boron atoms have three electrons in their outermost shell. When they form covalent bonds with surrounding semiconductor atoms, the boron atom will lack one electron, thus creating a hole in the valence band. The holes introduced by impurity doping can significantly increase the hole concentration in the semiconductor, forming a P-type semiconductor. In P-type semiconductors, holes are the majority carriers, while electrons are the minority carriers.

IV. The Role of Semiconductor Holes

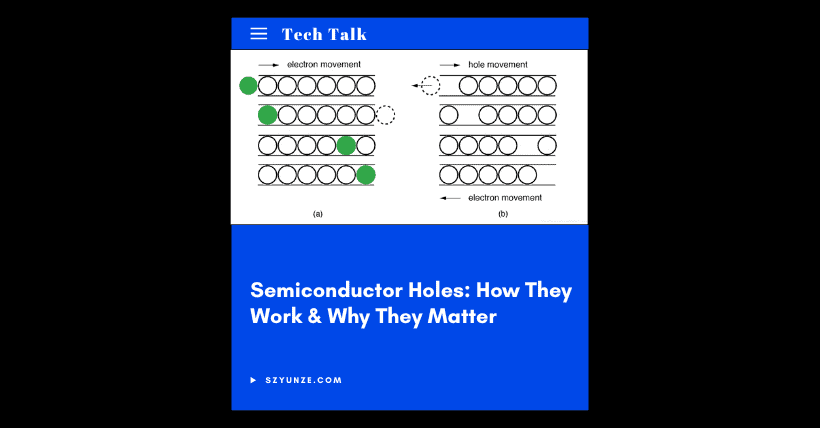

In semiconductor materials, the formation of current is due to the directional movement of charge carriers. When a voltage is applied across the semiconductor, electrons in the conduction band move against the direction of the electric field to form an electron current. Holes in the valence band, on the other hand, move in the direction of the electric field to form hole current. From a microscopic perspective, the movement of holes is essentially the process in which electrons in adjacent covalent bonds sequentially fill the holes.

For example, when a hole appears at a certain position, an electron from an adjacent covalent bond can move to this hole position, filling the hole. The position where this electron was originally located will then form a new hole. This cycle continues, showing the movement of holes in the direction of the electric field, forming current.

V. Application of Holes in Semiconductors

In integrated circuits, many semiconductor devices, such as diodes, transistors, resistors, capacitors, etc., are integrated onto a small semiconductor chip. As an important charge carrier in semiconductors, holes play a crucial role in all devices and circuits within integrated circuits.

For example, in CMOS (Complementary Metal-Oxide-Semiconductor) integrated circuits, a complementary structure is formed by N-type MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) and P-type MOSFETs.

In P-type MOSFETs, holes are the majority carriers. By controlling the gate voltage, the conductivity of the channel in the P-type MOSFET can be adjusted, thereby processing and controlling circuit signals. The efficient transmission and precise control of holes in integrated circuits are key to achieving high performance and low power consumption in integrated circuits.

VI. Conclusion

In conclusion, as an important concept in the semiconductor field, holes play a significant role in the electrical properties, conduction mechanisms, and functioning of various semiconductor devices.
