Performance Showdown: RX 6750 XT vs RTX 4060 Ti

Recently, there’s been news that AMD is set to release an adrenaline-boosted version of the Radeon RX 7600, known as the Radeon RX 7600 XT, in January next year. This graphics card is aimed at competing with NVIDIA’s GeForce RTX 4060 series within the $300 price range.

Following AMD’s previous strategies, the Radeon RX 7600 XT is likely a trimmed-down version of the original RX 6700 XT series. The Radeon RX 7600‘s performance is already quite competitive with the GeForce RTX 4060, so the Radeon RX 7600 XT‘s true challenger would be the GeForce RTX 4060 Ti.

If the performance of the Radeon RX 7600 XT is very close to the GeForce RTX 4060 Ti with minimal differences, yet it’s significantly cheaper, the Radeon RX 7600 XT would be highly desirable. This is something many enthusiasts are eagerly anticipating.

This article will compare the performance of the Radeon RX 6750 XT and the GeForce RTX 4060 Ti to indirectly estimate the performance of the Radeon RX 7600 XT.

01

Parameter Comparison of RX 6750 XT vs RTX 4060 Ti

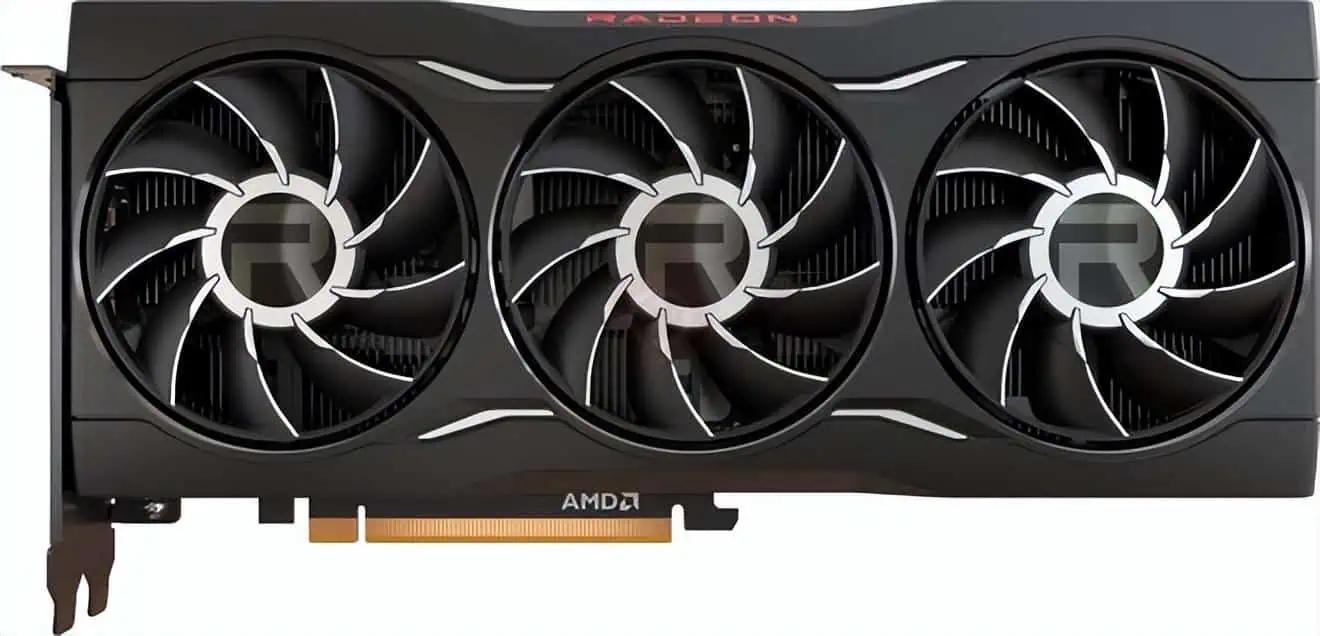

The Radeon RX 6750 XT was released on March 3, 2022. It uses the Navi 22 GPU, TSMC’s 7-nanometer process, featuring 2560 stream processors, 64 raster units, 160 texture units, 40 compute units, 40 ray tracing units, with 3MB of L2 cache, and 96MB of L3 cache.

The base operating frequency is 2150 MHz, with a maximum operating frequency of 2600 MHz. It comes with 12GB GDDR6 memory, a memory interface of 192 bits, and operates at 18 Gbps, resulting in a memory bandwidth of 432GB/s. Its FP32 performance stands at 13.31 TFLOPS, power consumption is rated at 250W, and the suggested retail price is $549.

The GeForce RTX 4060 Ti 16GB version was released on May 18, 2023. It utilizes the AD106 GPU, based on the Ada Lovelace architecture, using TSMC’s 5-nanometer process. It features 4352 shader units, 136 texture units, 48 raster units, 34 multi-unit stream processors, 136 tensor cores, and 34 ray tracing units, with a 32MB L2 cache.

The base operating frequency is 2310 MHz, with a maximum operating frequency of 2535 MHz. It comes with 16GB GDDR6 memory operating at a speed of 18 Gbps, with a memory interface of 128 bits, resulting in a memory bandwidth of 288.0GB/s. Its FP32 performance stands at 22.06 TFLOPS, power consumption is rated at 165W, and the suggested retail price is $499.

02

Benchmark Performance Comparison of RX 6750 XT vs RTX 4060 Ti

In the 3DMark Time Spy Extreme test, the Radeon RX 6750 XT scored 6288 points, while the GeForce RTX 4060 Ti scored 6232 points.

The Radeon RX 6750 XT leads the GeForce RTX 4060 Ti by about 56 points, a difference that can be overlooked, concluding that both have similar performance. However, in the last two ray tracing performance tests, the Radeon RX 6750 XT significantly lags behind the GeForce RTX 4060 Ti.

03

Test platform configuration of RX 6750 XT vs RTX 4060 Ti

The main configuration is as follows:

• Processor: Core i9-13900K
• Motherboard: ASUS ROG Strix Z790-E Gaming
• Memory: G.SKILL Trident Z5 RGB 32GB DDR5 6000MHz
• Storage: Two Samsung 970 EVO M.2 2280 1TB
• Operating System: Windows 11

04

Game Testing of RX 6750 XT vs RTX 4060 Ti

Seven games will be tested separately, all using 1440P highest quality settings. In the following series of images, the left side represents the GeForce RTX 4060 Ti platform, while the right side represents the Radeon RX 6750 XT platform.

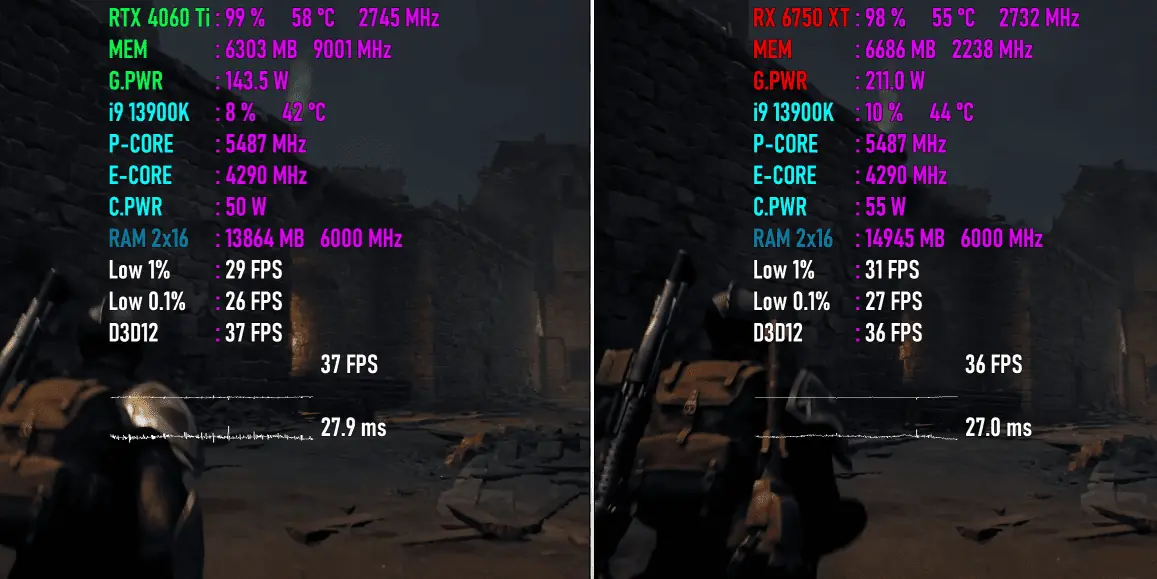

① The First Game is “Ruins 2”

In this game, the CPU usage of the Radeon RX 6750 XT platform is 2% higher than the competitor, memory usage is 1GB higher, GPU usage is the same, and video memory usage is 0.4GB higher.

In terms of average frame rate, lowest instantaneous frame rate, and frame time, the performance of both platforms is equal, and the game performance is on par.

However, the CPU usage, memory usage, and video memory usage of the GeForce RTX 4060 Ti platform are lower, using fewer overall hardware resources, and the power consumption is 67W lower than the competitor, overall having some advantages.

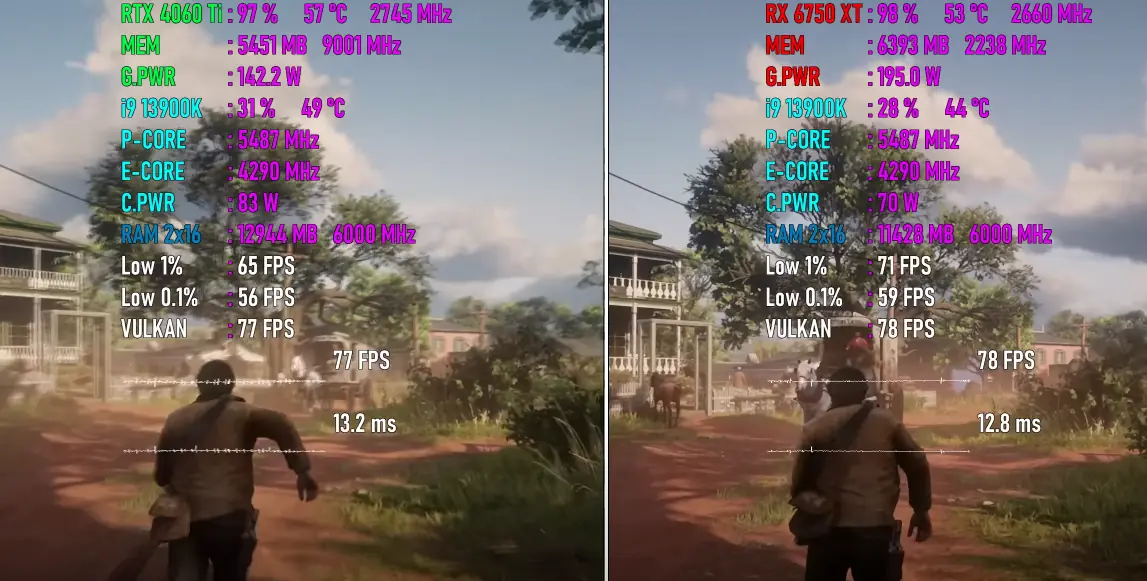

② The Second Game is “Red Dead Redemption 2”

In this game, the CPU usage of the Radeon RX 6750 XT platform is 3% lower than the competitor, memory usage is 1.5GB lower, GPU usage remains equal, and video memory usage is 0.9GB higher.

In terms of the average frame rate, both platforms perform equally. The Radeon RX 6750 XT platform has a slight advantage with 6 FPS higher lowest instantaneous frame rate, and the frame time is almost the same, indicating similar overall game performance between the two.

Unlike the previous game, in this game, the Radeon RX 6750 XT platform utilizes lower CPU and memory resources but still has higher video memory usage compared to the competitor. Its power consumption is 53W higher, while the temperature is 4 degrees lower than the competitor.

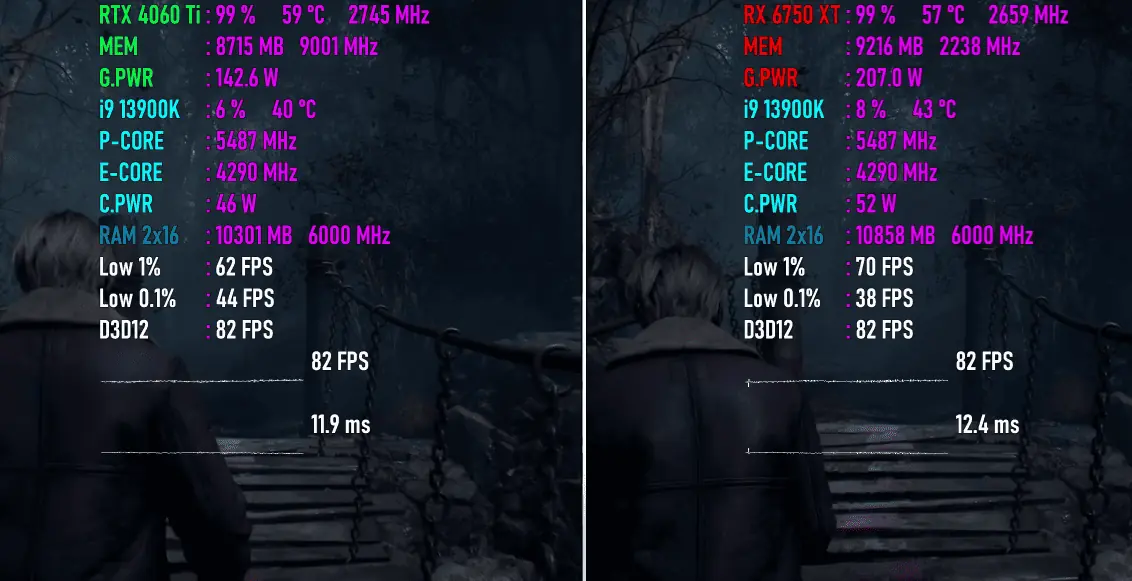

③ The Third Game is “Resident Evil 4”

In this game, the CPU usage of the Radeon RX 6750 XT platform is 2% higher than the competitor, memory usage is 0.6GB higher, GPU usage is equal, and video memory usage is 0.5GB higher.

In terms of the average frame rate, both platforms perform identically. The Radeon RX 6750 XT platform has an 8 FPS higher lowest instantaneous frame rate, with a minimal difference in frame time, indicating a very close overall performance between the two.

Regarding power consumption, the Radeon RX 6750 XT consumes 64W more than the competitor, while maintaining a 2-degree lower temperature.

④ The Fourth Game is “Cyberpunk 2077”

In this game, the CPU usage of the Radeon RX 6750 XT platform is 3% higher than the competitor, memory usage is 0.2GB lower, GPU usage is equal, and video memory usage is 1.4GB lower.

In terms of average frame rate, the Radeon RX 6750 XT platform is 3 FPS lower than the GeForce RTX 4060 Ti platform, with a 3 FPS higher lowest instantaneous frame rate, and a difference in frame time of less than 2ms, indicating a relatively similar performance between the two.

Regarding power consumption, the Radeon RX 6750 XT consumes 72W more than the competitor and operates at a temperature 2 degrees higher.

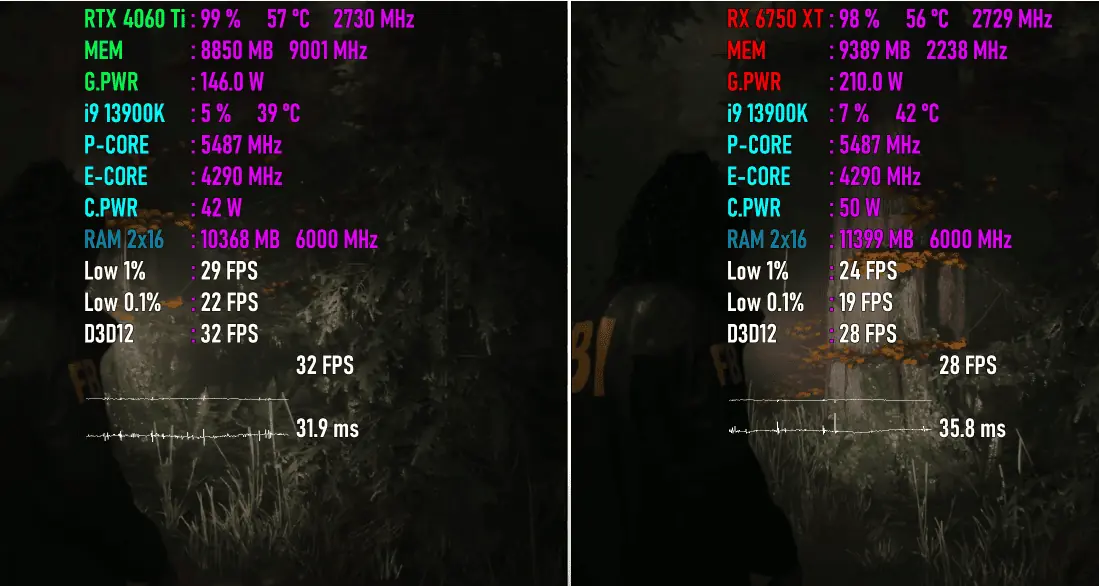

⑤ The Fifth Game is “Mind Slayer 2”

In this game, the CPU usage of the Radeon RX 6750 XT platform is 2% higher than the competitor, memory usage is 1GB higher, GPU usage is equal, and video memory usage is 0.5GB higher.

In terms of average frame rate, the Radeon RX 6750 XT platform is 4 FPS lower than the GeForce RTX 4060 Ti platform, with a 5 FPS lower lowest instantaneous frame rate, and a 4ms higher frame time, indicating a relatively similar overall performance, with a slight advantage for the GeForce RTX 4060 Ti platform.

Regarding power consumption, the Radeon RX 6750 XT consumes 64W more than the competitor, while the temperatures are generally comparable.

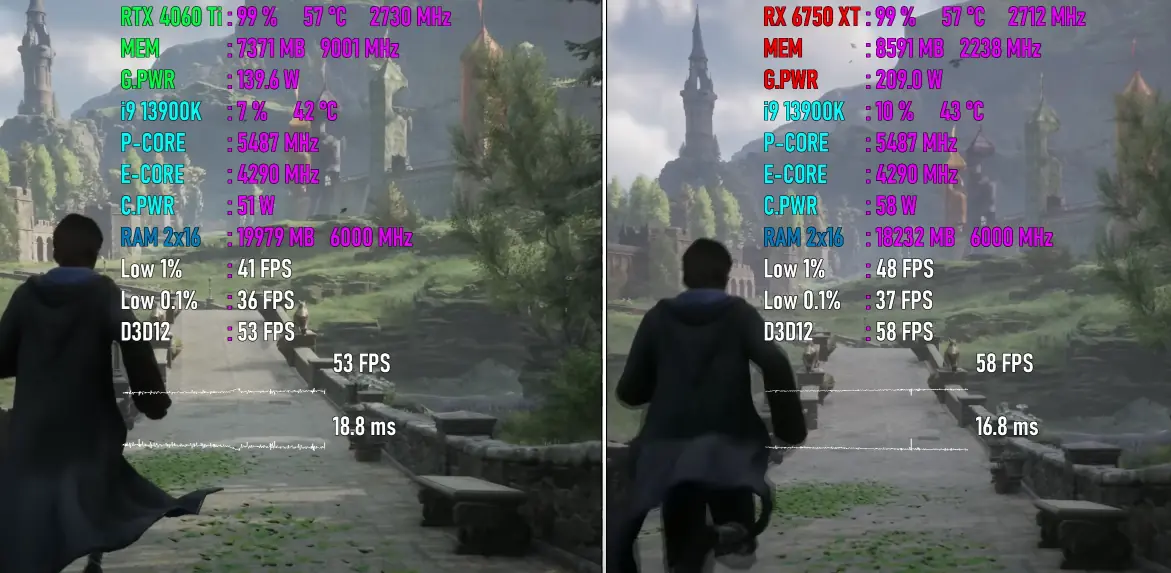

⑥ The Sixth Game is “Legacy of Hogwarts”

In this game, the CPU usage of the Radeon RX 6750 XT platform is 3% higher than the competitor, memory usage is 1.8GB lower, GPU usage is equal, and video memory usage is 1.2GB higher.

Regarding the average frame rate, the Radeon RX 6750 XT platform performs 5 FPS higher than the GeForce RTX 4060 Ti platform, with a 7 FPS higher lowest instantaneous frame rate and a 2ms lower frame time. Overall, the Radeon RX 6750 XT platform holds a slight advantage, which is a reversal compared to the previous game.

In terms of power consumption, the Radeon RX 6750 XT consumes 69W more than the competitor, while the temperatures remain equal.

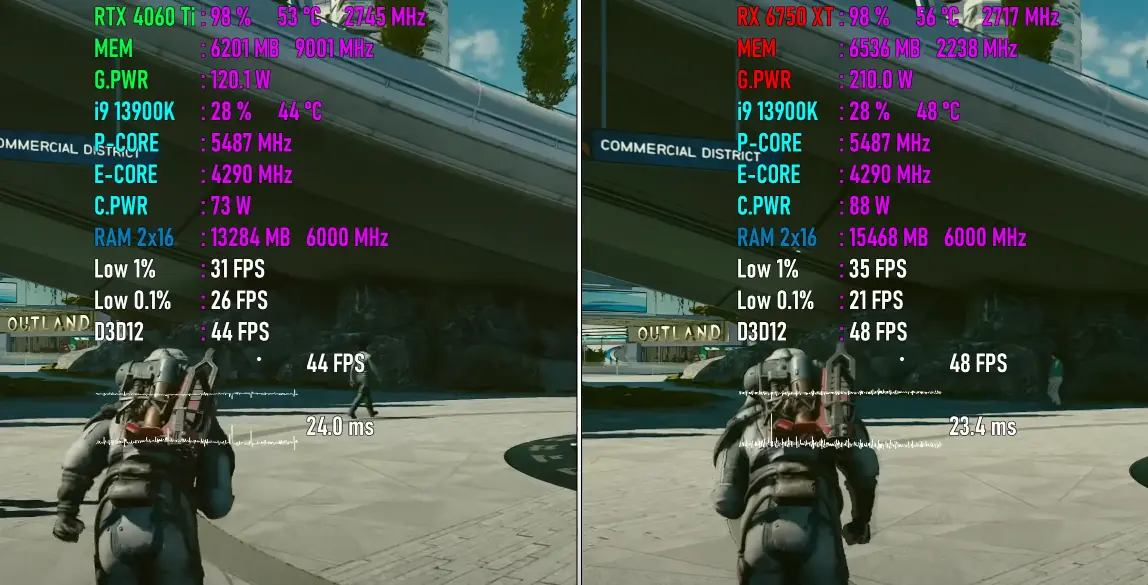

⑦ The Seventh Game is “Starry Sky”

In this game, both platforms have equal CPU usage. The Radeon RX 6750 XT platform has 2.2GB higher memory usage compared to the competitor, and both platforms have equal GPU usage with a 0.3GB higher video memory usage for the Radeon RX 6750 XT.

Regarding the average frame rate, the Radeon RX 6750 XT platform is 4 FPS higher than the GeForce RTX 4060 Ti platform, with a 4 FPS higher lowest instantaneous frame rate and minimal difference in frame time, indicating a relatively similar overall performance between the two.

In terms of power consumption, the Radeon RX 6750 XT consumes 90W more power than the competitor and operates at a temperature of 3 degrees higher.

05

Comparative Conclusion of RX 6750 XT vs RTX 4060 Ti

Through the aforementioned tests, it can be seen that whether it’s the 3DMark benchmark or the final actual game performance test, the scores of Radeon RX 6750 XT and GeForce RTX 4060 Ti are very close. If judged solely based on performance, they can be considered equal and on par with each other.

Nevertheless, there are still some noticeable differences between the two. In most games, the CPU usage of the GeForce RTX 4060 Ti platform is lower than that of the Radeon RX 6750 XT, and power consumption is generally several tens of watts lower, which still gives it some overall advantages.

Returning to the initial question of this article, confirming that the Radeon RX 6750 XT is on par with the GeForce RTX 4060 Ti is undisputed. Now, the biggest suspense and the most noteworthy issue are: How much will the rumored Radeon RX 7600 XT be scaled back compared to the existing RX 6700 series? Additionally, what will its final price be?

The price of the lower-spec version of the Radeon RX 7600 XT (10GB VRAM version) can be roughly confirmed at around $300. However, estimating the price of the high-spec version (12GB VRAM version) that can truly compete with the GeForce RTX 4060 Ti is still quite challenging. But conservatively estimating, it might be $50 lower than the GeForce RTX 4060 Ti, which is still something to look forward to.

We will share the latest leaks and updates about the Radeon RX 7600 XT as soon as possible. Stay tuned.
