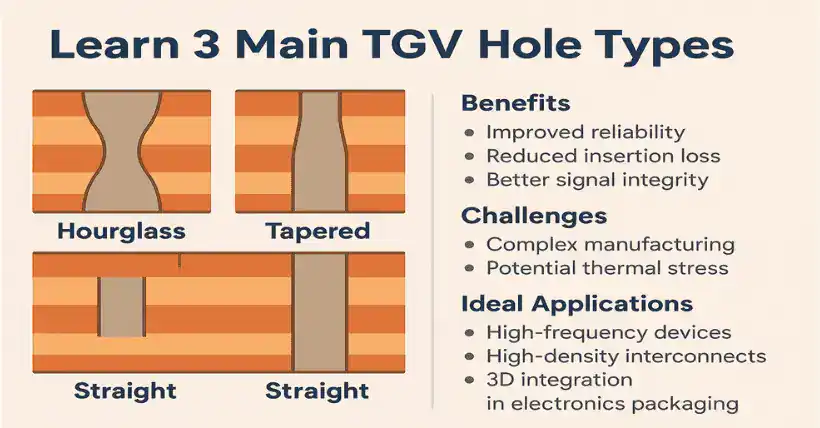

Friends often ask, how many types of laser-drilled hole shapes are there in TGV? What are their applications? How many hole types are there in TGV? The most common are three types:
- Hourglass shape: Narrow in the middle, wide at both ends
- Tapered shape: Wide at the top, narrow at the bottom
- Straight wall shape: Equal width at the top and bottom
What are the differences in applications for different TGV hole shapes?
| Feature | X Shape | Taper | Straight |
|---|---|---|---|
| Copper fillability | Poor, prone to voids | Easy to fill | Slightly difficult |
| Processing difficulty | Medium | Low | High |
| Suitable products | General packaging | General packaging | High-density packaging, high-frequency SiP |
| Signal integrity | Poor | Average | Excellent |
| Thermal stress concentration | Present | Moderate | Lowest |
